Digital knife cutting can convert nested patterns into textile, leather, synthetic leather, felt, foam and other compatible flexible-material parts. The machine must control material movement while preserving the shape, face and edge needed for sewing or upholstery. Material stretch, porosity and direction can matter more than nominal thickness.
CHENDA’s digital-cutting project library supports discussion of flatbed and suitable feeding configurations. The final tool, table, conveyor, camera and software scope must be confirmed from actual samples and patterns. This page does not claim universal compatibility with every fabric or leather.
01 / Start with the pattern family
Potential applications include upholstery panels, soft furniture covers, automotive interior components, bags, protective covers, felt components, foam layers and selected apparel or technical-textile patterns. Some jobs use single layers for accuracy and variation. Others use several layers, but multilayer capability depends on the material, stack, hold-down and selected cutting technology.
Define the actual production method rather than asking for a generic “fabric cutter.”
02 / Understand the material
Knitted and elastic materials can distort during loading, vacuum hold-down, cutting and removal. Measure patterns after the material has relaxed under the normal production condition. Excess tension can produce accurate cuts on the table that change shape later.
Air passes through many textiles, reducing vacuum hold-down. Table zoning, underlay or overlay methods, material coverage and leak control may be needed. Test the full usable width and small separated pieces.

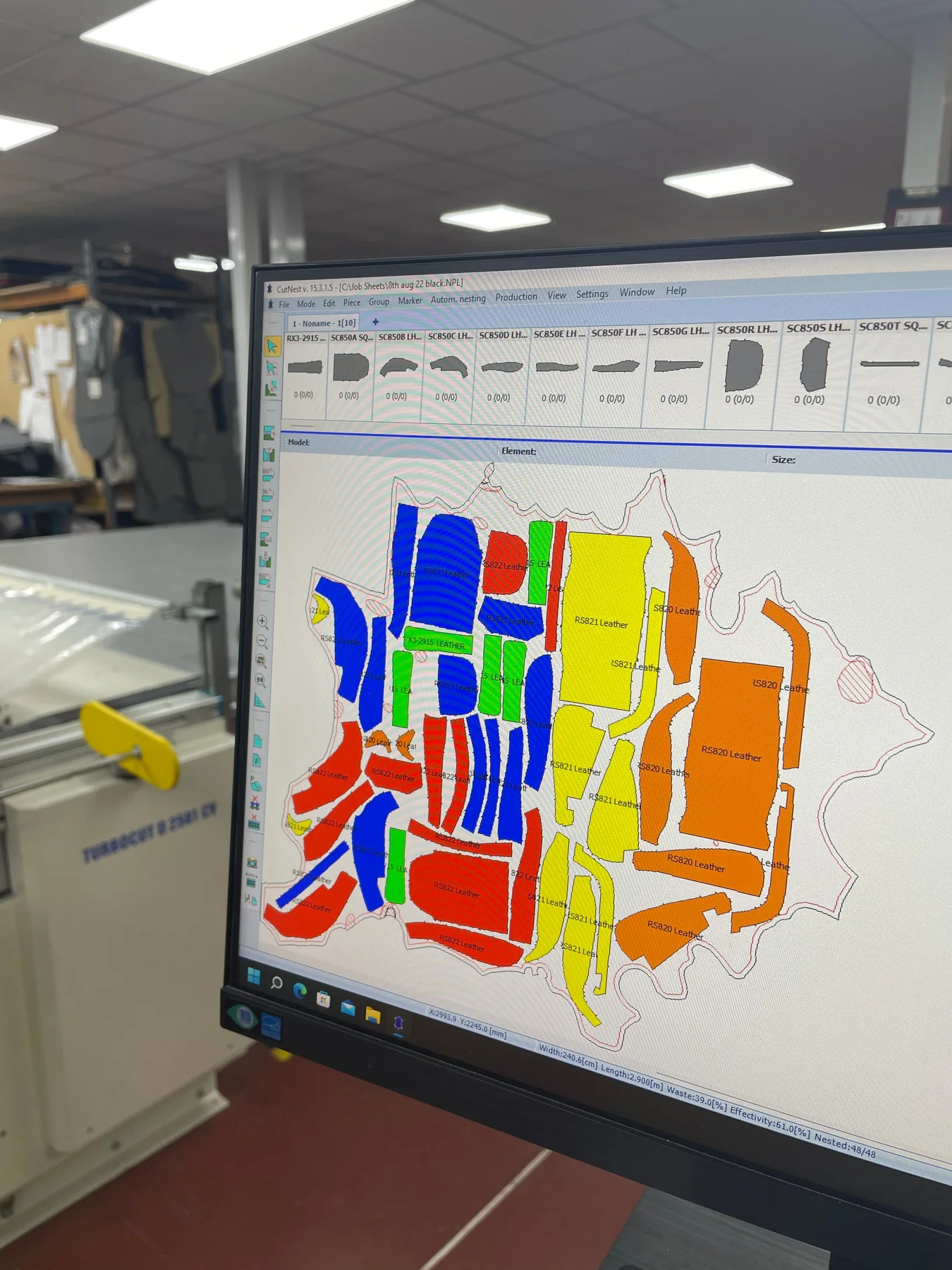

Woven grain, leather grain, brushed nap, print direction and shade variation restrict nesting rotation. The nesting software can only optimize within the rules provided by the operator.
Coatings, adhesive backings, films, foam laminates and delicate faces influence blade choice, friction and table contact. Some materials leave fibers or residue that affect maintenance and hold-down.
Leather and other natural materials may contain defects, variable thickness and usable-area limits. If defect recognition or projection is needed, define the human and software workflow. Do not assume that a camera automatically grades material.
03 / Keep the pattern under control
Import or create clean, closed contours. Confirm units, seam allowance, notches, drill or mark points, mirror rules and size grading. Maintain the link between pattern revision and production order.
Set material width, directional constraints, pair or symmetry rules, defect zones and spacing. Material yield should be measured after usable defects and collection losses, not from the theoretical nest alone.
Sheet material is placed without stretch or wrinkles. Roll feeding requires alignment, controlled tension and a method for advancing material without accumulating skew. A conveyor may support continuous work, but the cutting and feed repeatability must be tested together.
Vacuum zones keep the active area stable. The selected knife action, blade, depth and speed should cut the required layers without pulling yarns, dragging corners or damaging the underlay.
If pieces need labels, notches or assembly marks, confirm the method and whether it survives handling or sewing. Operators should remove parts without stretching them and bundle mirrored or matched sets reliably.
04 / Judge the cut edge
The quoted tool set should be based on sample results. Possible actions on suitably configured systems can include drag cutting, oscillating cutting, rotary cutting, perforation or marking, but availability and suitability must be confirmed for the machine.
Evaluate:
One blade rarely covers the full range from thin film to dense felt and foam.
05 / Design the material flow
Choose the working area from pattern length and usable material width. A larger table can support longer furniture panels but increases floor space and vacuum demand. A conveyor or roll feed may improve continuous production, but it adds tracking, advance accuracy and collection questions.
Ask how the machine handles:
06 / Define the vision task
Printed fabrics or preprinted panels may require contour recognition or registration marks. Test real print and material because stretch can create nonuniform distortion. A system that aligns two reference points may not correct local shape changes across a large textile panel.
State whether the priority is matching a printed outline, aligning repeated motifs, preserving pair symmetry or locating a defect. These are different vision tasks.
07 / Prepare a useful cutting brief
Send:
The RFQ guide also covers site utilities, timing and acceptance.
08 / Inspect after relaxation
Test more than a simple rectangle. Choose patterns with long contours, concave corners, small notches, internal cutouts, mirrored pairs and any registration requirement. Use production-width material when hold-down is a risk.
After cutting, allow elastic material to relax and then compare it with the approved pattern. Assemble or sew a representative set. Inspect:
Retain the material lot and process record for comparison during commissioning.
09 / Find the cause of variation
10 / Material-specific questions
Possibly on suitable material and configuration, but stack height, compression, hold-down and contour quality must be tested. Do not infer multilayer performance from a single-layer video.
No. Table zoning, leak area, material porosity, overlay method, sheet coverage and cutting sequence all affect stability.
Software can optimize within defined rules. Incorrect width, defects, grain, pairing or spacing inputs create an unrealistic result. Compare approved usable parts per roll.
Cut a real nested job, let the pieces relax, inspect critical dimensions and assemble or sew a representative set. Include loading and collection in the time study.
